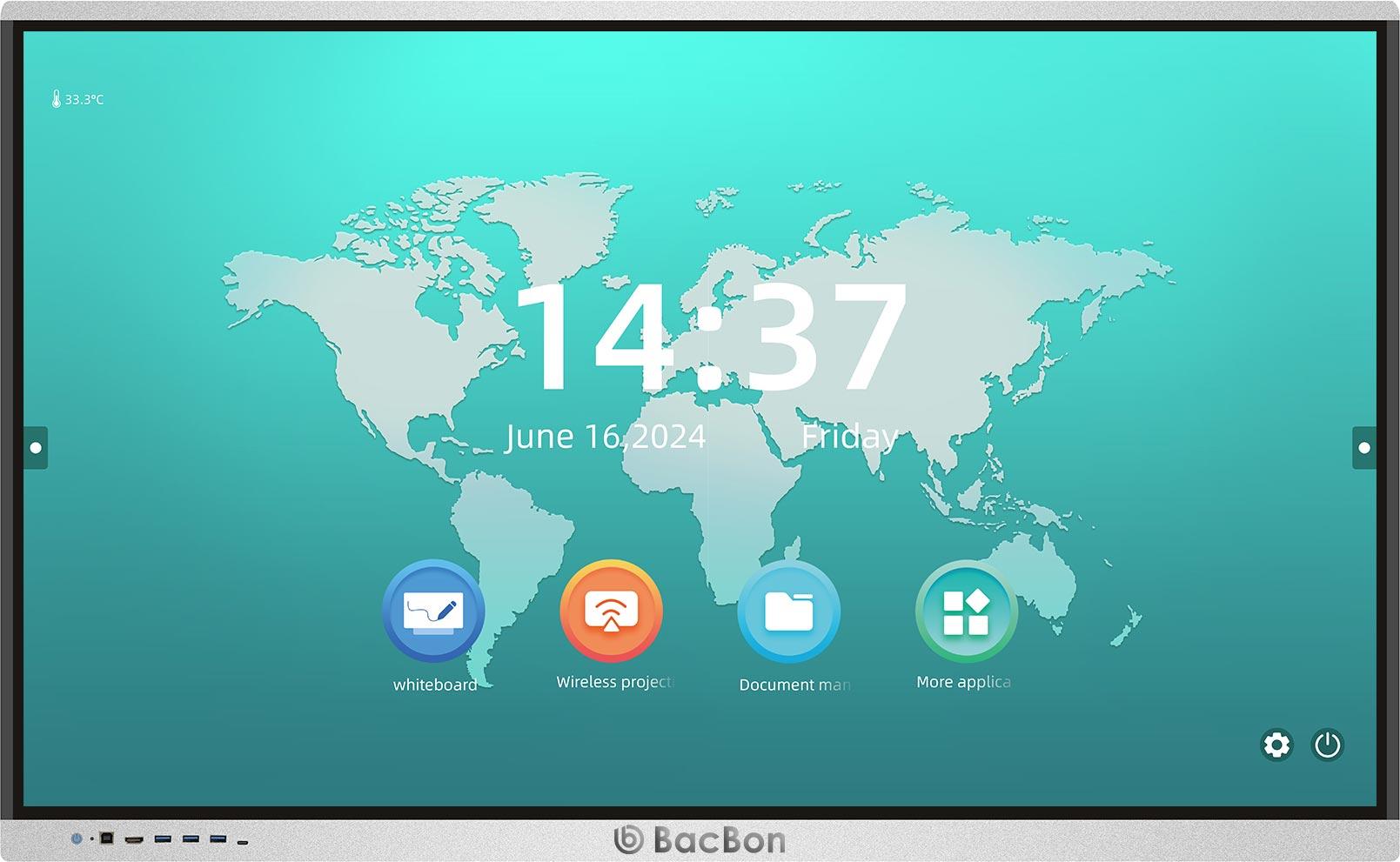

98 inch IFP
- Smart writing board supports 20/50
- points finger touch
- UHD Display Enables Immersive Learning
- Built-in PC Module
- Built-in Android Module
- 4mm Anti-Glare, Anti fingerprint & anti Microbial Tempered Glass, & higher Mohs7
- Wifi Module
- Easy annotation and gesture eraser.
- Zero-bonging design takes good performance.
- 9 users screen share simultaneously
- Built-in note software covering all STEM Subjects
- mozaBook CLASSROOM
- EduPack (SaaS LMS)
| Specification | ||
| Model | FC-98LED | |
| Diagonal Size | 98" | |
| Brightness | 350/400/450/500 cd/m2/nits | |
| Contrast Ratio | 10000:1 | |
| Panel Dimension (mm) | 2157.8 x 1213.3 | |
| Dot Pitch (H x W) | 0.5622 x 0.5622 | |
| Panel Type | TFT/IPS | |
| Backlight | Direct LED (D-LED) | |
| Resolution | 3840*2160 (4K-UHD) | |
| Aspect Ratio | 16:9 | |
| Response Rate | <2ms | |
| Refreshing Frequency | 60/90/120 Hz | |
| Viewing Angle | 178° (H), 178° (V) | |
| Backlight Life Time | 50,000 hrs - 80,000 hrs | |
| Display Colors | 10 bit (1.07B) | |
| Glass |
4mm Anti-Glare, Anti fingerprint & anti Microbial Tempered Glass, & higher Mohs7 |
|
| Speaker output | 2 x 20 watts, + Subwoofer 19W x 1 | |
| Interactivity | ||
| Touch Technology | IR Multi-touch Technology | |
| Touch Points | 20 points writing / 50 points touch | |
| Touch Resolution | 32768x32768px | |
| Response Rate | <4ms (Single touch) <4ms (Max touch inputs) |
|
| Touch Accuracy | ≤3 mm | |
| Recognition | <4ms (max touch inputs) | |
| Writing Height | 1mm | |
| Minimum Touch Object | Finger or passive stylus | |
| Supported OS | Windows, Mac OS, Android, Chrome OS, Linux | |
| Android Module | ||
| Android Version | 14.0/15.0/16.0 or higher | |
| CPU Processor | Octa-Core | |
| CPU Processor Speed | Octa-core 2.0 to 2.4 GHz | |
| GPU | G610 MC4 | |
| RAM | 08 GB DDR4 or Higher | |
| ROM | 128 GB | |
| Built-in AI Camera | ||
| Webcam | Built-in AI Camera with Microphone (MIC-8), e-PTZ | |
| FOV | 120° | |
| Microphone | 8 Array | |
| Resolution | 4K or Higher | |
| Imaging Sensor | 48/50/64 MP | |
| Lens Type | Glass, Auto Focus | |
| Pick-Distance | 8M | |
| OPS (Integrated PC Module) | ||
| Chipset | Intel | |
| CPU | Core i7 Processor, 13th Gen, Intel® Industry-leading CPU Performance | |
| Memory | 32GB DDR4 | |
| Storage | 1 TB NVME | |
| Power | ||
| Voltage | 90-240V AC 50-60Hz | |
| Maximum Power | ≤450W | |
| Standby Power | ≤0.5W | |
| Physical Specifications | ||
| Net Weight | 98KG | |
| Gross Weight | 143KG | |
| Product Size (mm) (WxHxD) | 2225 x 1331 x 116 | |
| Packing Size (mm) (WxHxD) | 2322 x 1495 x 215 | |
| VESA Hole Position | 4-M8 screw / hle 1000x400 | |
| Environmental | ||
| Working Temperature | 0°C ~ 40°C | |
| Storage Temperature | -10°C ~ 90°C | |
| Working Humidity | 10% ~ 90% Non-Condensing | |
| Storage Humidity | 20% ~ 80% RH Non-Condensing | |
| Front Buttons | ||
| 1 Button | Power (Button) | |
| Connectivity | Qty. | |
|
Front
|
HDMI IN | 1 |
| TOUCH-USB | 1 | |
| USB3.0 (Android & PC) | 4 | |
|
Back
|
LAN (RJ45) | 1 |
| HDMI | 2 | |
| VGA | 1 | |
| AUDIO | 1 | |
| AV | 1 | |
| YPBPR | 1 | |
| MIC | 1 | |
| Type-C | 1 | |
| USB2.0 (Android) | 1 | |
| USB3.0 (Android) | 1 | |
| RS232 | 1 | |
| Touch USB | 1 | |
|
Output
|
HDMI | 3 |
| EARPHONE | 1 | |
| SPDIF (Optical) | 1 | |
| LAN 1000M | 1 | |
| Hotspot | Yes | |
| Function Buttons | 3-in-1 Power Button | |
| WiFi | 802.11 a/b/g/n/ac embedded (2.4 / 5G Dual Module) | |
| Bluetooth | 5.2 or Higher | |
| OPS (Physical Ports) | ||
| USB2.0 | x 2 | |
| USB3.0 | x 2 | |
| LAN | x 1 | |
| HDMI | x 1 | |
| LINE-OUT | x 1 | |
| MIC-IN | x 1 | |
